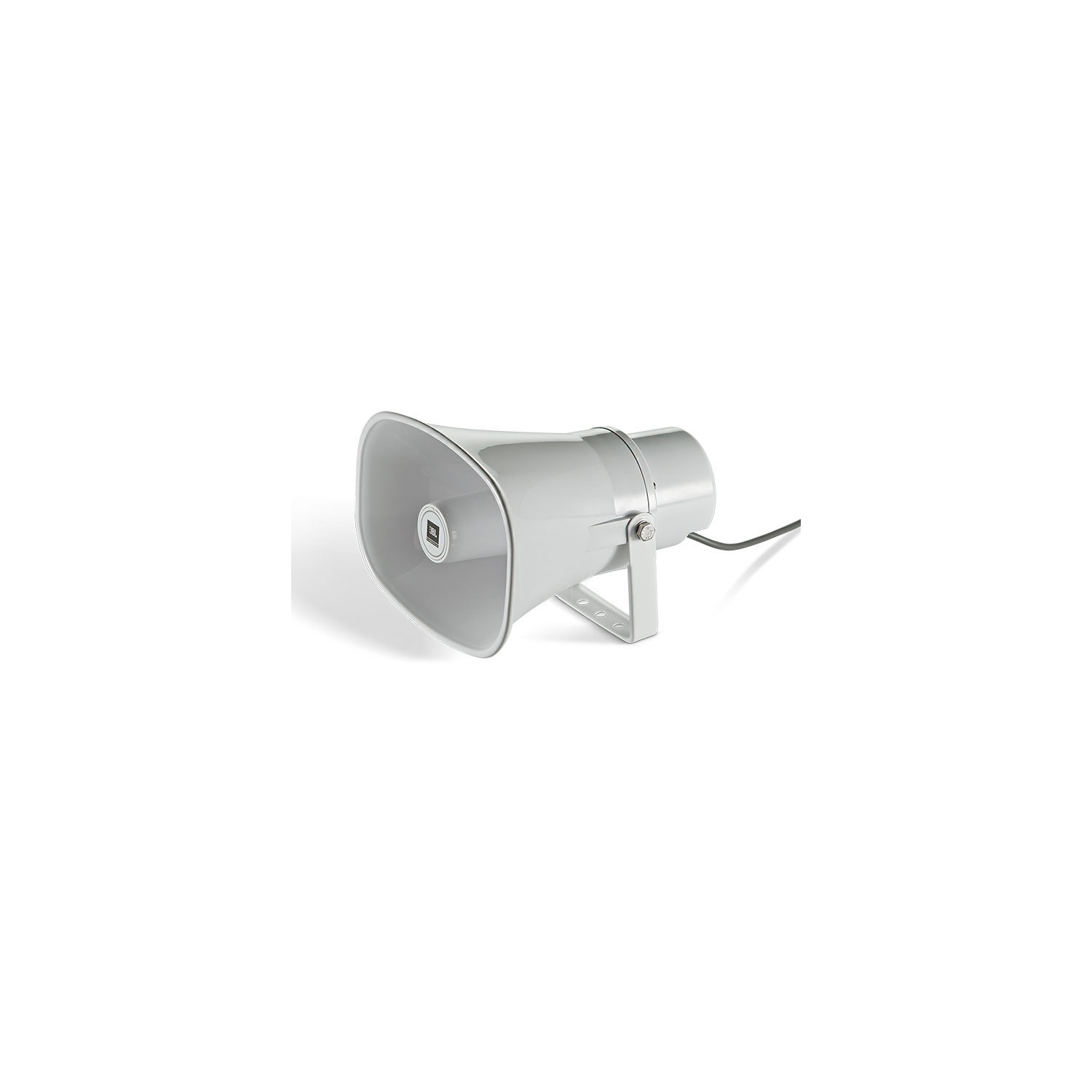

The Commercial Solutions Series CSS-H15 Paging Horn provides excellent voice range clarity for public address systems, announcement/paging, intercom, security, alarm and industrial applications. Designed for demanding environmental conditions, the CSS-H15 is highly weather resistant (IP-65 rated) so it can be used in either indoor or outdoor applications. The wide coverage pattern allows the horn to cover a larger audience area than is the case with many paging horns.
FEATURES
Excellent voice range clarity for announcement and paging.
High sensitivity delivers high sound levels with minimal power amplification.
Wide 70° horizontal by 90° vertical coverage for medium throw applications.
Phenolic diaphragm driver for outdoor durability and high reliability.
UL-registered 15-watt multi-tap transformer, with 8 O direct bypass.
Built-in high-pass filter enhances reliability by protecting against low frequency damage.
Highly weather-resistant, with stainless steel bracket and hardware.
APPLICATION EXAMPLES
Public Access Areas
Warehouses
Factories
Schools
Recreational Facilities
Commercial Buildings
Distribution Centers
Civic Centers
Other Commercial Sound and Protective Signaling Systems
SPECIFICATIONS
Frequency Response (-10 dB) 400 Hz – 7.5 kHz
Coverage Pattern 70° horizontal by 90° vertical (at 2 kHz and averaged 1 kHz – 4 kHz)
Included High-Pass Filter Passive 350 Hz high-pass filter built-in to protect against damage from frequencies below operational range.
Directivity Factor (Q) 10.9 (2 kHz)
Directivity Index (DI) 10.4 (2 kHz)
System Power Rating 15 W (60 W peak), 100 hrs
Sensitivity (1W, 2.83V@ 1m) 105 dB, ave. 1 kHz – 6 kHz; 111 dB at 2 kHz
Maximum SPL (1m) 117 dB cont ave. (123 dB peak), 1 kHz – 6 kHz;
IN THE BOX
Stainless steel mounting bracket
